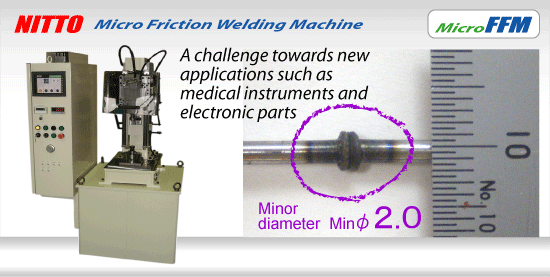

Micro Friction Welding Machine

| Micro Friction Welding Machine

Installed with high-speed rotating motor, it enables friction welding of the material whose diameter is 2.

Applications are expected especially for those usages in which dissimilar metal welding is needed, such as electronic parts (communicative IT equipment, sensor and so on), medical instruments and a frame of eyeglasses.


Video

Specification table
Vertical type [Head slide]
Model

FFM-

001V 002V
Welding capacity Mild Steel round-bar

(mm)

ø1.0-ø5.0 ø2.0-ø6.0
Rotating side collet chuck
Dia. x L

(mm)

ø1.0-5.0 x50 ø1.0-8.0 x100
Fixed side collet chuck
Dia. x L

(mm)

ø1.0-5.0 x50 ø1.0-8.0 x100
Spindle Maximum rotation speed

(rpm)

30000 20000
Drive system

high speed rotational motor (variable)
Forge force Max

(KN)

1.0 3.2
Head slide Drive system

Servo motor + Ball-screw
Stroke

(mm)

220 250
Position detection

Servo motor position encoder
Spindle lubricant coolant system

Spindle lubricant coolant
Weight

(TON)

0.5 0.5
